Where Lotion Pumps are used.
NABO Plastic supplies lotion pumps in numerous styles, sizes, and colors. They provide convenience and efficiency and are widely used in various applications, including:
Skincare: Moisturizers, serums, sunscreens.
Health Care: Hand soaps and sanitizers.
Body Care: Massage oils.
Cosmetics: Foundations, liquid makeup.
Bathroom Products: Shampoos, conditioners, body washes.
Food Industry: Sauces and certain condiments.
Understanding the Structure of a Lotion Pump.
A lotion pump has over ten components that work together to transfer the lotion out of the bottle.
How it works
Press the Pump Head
Pressing the pump head forces the piston down, forming a vacuum that draws lotion into the chamber.
Release the Pump Head
When the pump head is released, the spring moves the piston back, pushing the lotion up through the nozzle.
Press Again
Pressing the pump head again repeats the process, pulling more lotion into the pump.
Cycle Repeat
Press and release the pump head repeatedly, and the liquid will be continuously dispensed from the nozzle.
Overview of lotion pump components
| Part Name | Material | Function |
|---|---|---|
| Actuator | PP | The top part is pressed to dispense the lotion. |
| Connecting Cap | PP | Joins the nozzle to the rest of the pump. |
| Closure | PP | Hold the pump tightly to the bottle neck. |
| Gasket | PE | A seal that prevents lotion from leaking from the bottle. |
| Piston Rod | PP | Connects the top part to the piston. |
| Piston | LDPE | Moves up and down to pull lotion up and push it out. |
| Piston Seat | HDPE | Holds the piston in place and ensures proper movement. |
| Spring | SUS | Helps the piston return to its original position. |
| Ball Valve | Glass | Allows lotion to move up but stops it from going back down. |
| Pump Body | PP | The primary structure houses all the parts. |
| Dip Tube | LDPE | Extends to draw lotion up into the bottle. |
How are Lotion Pumps Made at NABO Plastic?
Explore the precise craftsmanship behind our high-quality lotion pumps.
Injection Molding
Creates components such as the actuator, connection cap, closure, piston, piston rod, piston seat, and pump body.
Preparing Non-Injection Molded Parts
Includes the gasket, stainless steel spring, glass ball, and dip tube.
Assembly
Multiple machines are used to assemble all the above components.
Quality Inspection
Includes visual inspection, dimension measurement, torque testing, vacuum leak detection, and liquid output testing.
How do I find the right Lotion Pump for my bottle?
Consider several key factors when making your choice. See what we have and how they meet your needs.
Match the Neck Finish and Closure Style.
The neck finish is the diameter and thread style of a bottle opening. Match the lotion pump’s closure with your bottle’s neck finish to ensure a secure fit and prevent leaks. Always check size compatibility.
NABO Plastic offers the following lotion pump neck finishes:
20mm: 20/410
22mm: 22/410, 22/415
24mm: 24/400, 24/410, 24/415, 24/425
28mm: 28/400, 28/410, 28/415
32mm: 32/410
38mm: 38/400, 38/410, 38/415
Ribbed
Smooth
Besides size, lotion pumps’ closures come in smooth and ribbed styles. Smooth closures have a stylish look, while ribbed closures offer better grip, ideal for wet or soapy conditions. Select the style that suits your brand image and usage scenario.
Select a lotion pump Lock Style.
Lotion pumps come with different lock mechanisms to prevent accidental dispensing during transport or storage.
Lock Down: Also called a press-down twist lock, it locks with screw threads. Turn the actuator counterclockwise to unlock.
Lock Up: A left-right twist lock mechanism unlocks or locks the pump with a simple twist.
Clip-Lock: This style uses a small plastic clip fixed around the pump neck. Remove the clip before use.
Choose the lock type that best fits your product needs and is convenient for your customers.
Verify your product’s Metal Compatibility.

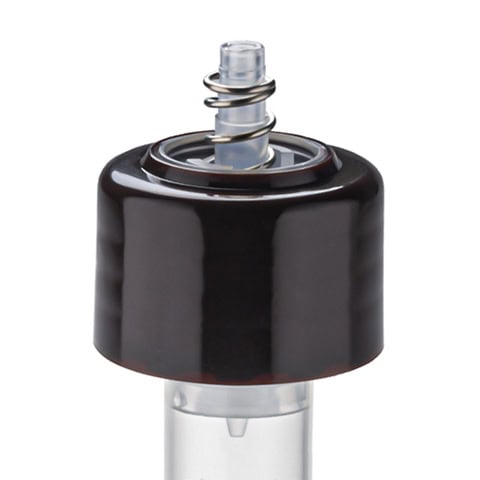

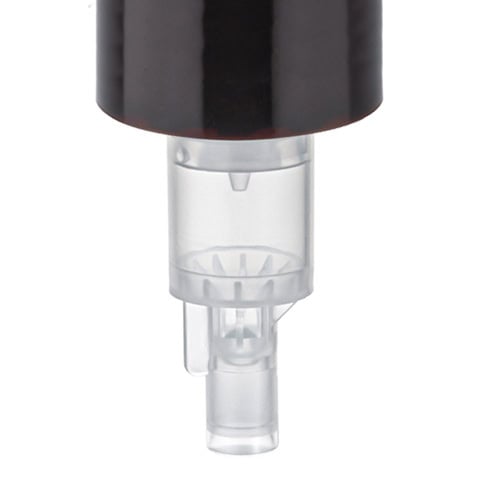

The stainless steel spring in a lotion pump can be located inside or outside the pump chamber. If your product contains ingredients that may react with metal, choose a pump with a spring outside the chamber. Acids or essential oils in some lotions and creams can corrode metal, impacting the pump’s function and product safety. Verify your formula’s metal compatibility to ensure longevity.
Decide on the Dispensing Output.
The output of a lotion pump determines how much product is dispensed per full compression.
When choosing the pump output, consider the viscosity of your product and its intended use. For example, thicker lotions may need a higher output to dispense enough product, while lighter creams might need less for controlled application.
NABO Plastic provides lotion pumps with outputs ranging from 0.5ml to 30ml per stroke, covering small to high dispensing needs.
Choose a lotion pump Head Style.
The lotion pump head/actuator/nozzle style is often the first factor consumers consider. The right pump head style can significantly impact product visual appeal and shopping intention.
NABO Plastic carries a variety of pump head styles, including slim, oval, disc, short nozzle, and long arm. These ergonomic designs are elegant and comfortable, ideal for frequent use.
Choose a pump head style that complements your bottle design, aligns with your brand image, and enhances user experience.
Regular Colors
UV Plating
Aluminum
Water Transfer
Pick your desired Color.
The color of your lotion pumps can enhance your product packaging and boost brand recognition.
NABO Plastic offers a variety of pump colors, from classic black and white to custom shades, along with advanced surface treatments:
UV Plating: Use ultraviolet light to cure a coating onto the pump surface, resulting in a metallic look with a gold or silver color.
Nested Aluminum: Embeds a layer of aluminum over the pump closure for a luxurious, shiny gold or silver high-end look.
Water Transfer Printing: Use water as a medium to apply intricate patterns, like wood grain or stone textures, to the pump surface.
Consider how a pump color will look with your bottle and label design. The right color can make your product stand out on the shelf.

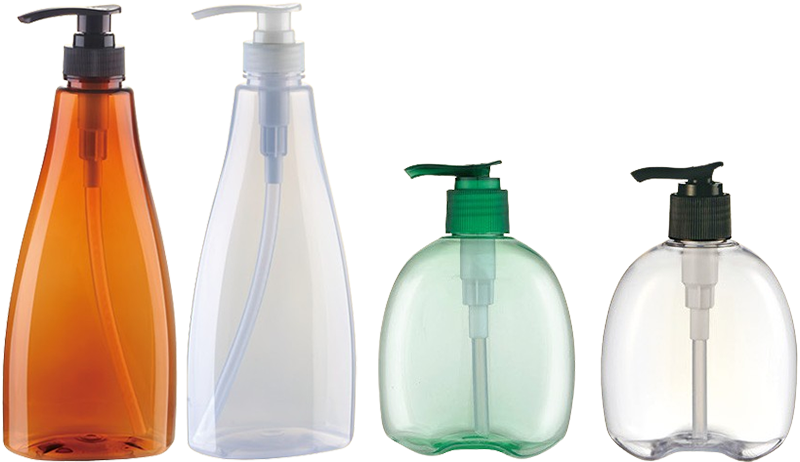

Specify the Dip Tube Length.
The correct length of your pump’s dip tube ensures no product is wasted in the bottle. If the dip tube is too long, it will bend overly. Too short, it won’t reach the product at the bottom.
There are typically two states for dip tube length for lotion pumps:
For taller bottles, the dip tube will bend inside the bottle. Ensure it naturally curves and touches the bottom edge.
For shorter bottles, the dip tube will be vertical. Ensure there is about a 2mm gap from the bottom.
NABO Plastic always custom-cuts our pump’s dip tube length to fit the height of your lotion bottle perfectly. The dip tube end is also cut into a V-shape to prevent clogging.
Try before your Bulk Order.
It is wise to try samples of the lotion pumps you’re considering. Testing with your product helps identify compatibility and user experience issues, allowing you to make adjustments before committing to a bulk purchase.
Get Free Samples from NABO Plastic
Experience the quality of our products! Share the item number you’re interested in, and we’ll send it within three business days.
Why NABO Plastic is your top choice for wholesale lotion pumps.
More things to consider before you buy.
Big Savings
Enjoy significant savings and maximize your budget with our unbeatable China factory direct prices. Get premium products at the best value!
Wide Selection
Choose from our extensive variety of models whether you’re looking for cutting-edge technology, timeless classics, or the latest trends.
Quality Assurance
Shop with confidence! If the quality of your bulk order does not match the sample, we guarantee a full refund. Your satisfaction is our priority.
24/7 Support
Our friendly support team is available 24/7 to assist with sales questions and technical advice, ensuring your business succeeds.
Meets All Standards
Our pumps comply with all related certifications, such as REACH, PAH, LFGB, etc., ensuring quality, safety, and environmental compliance.
Hassle-Free Shipping
We provide complete shipping assistance: sea or air, door-to-door delivery, and customs clearance for a seamless B2B buying experience.
Discover complete lotion pump dispensers.
Promote your lotion products with our matching dispensing bottles.
